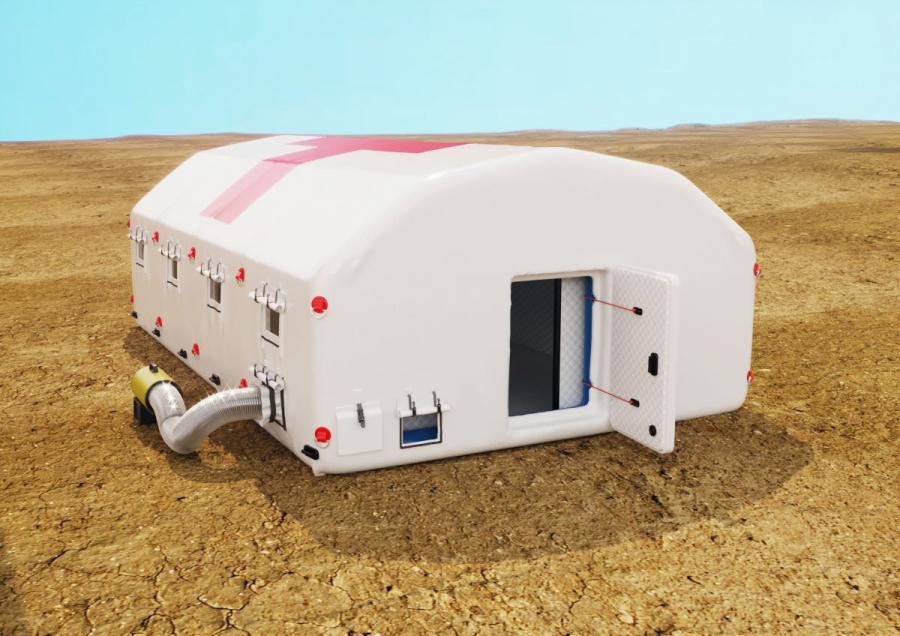

Pneumoframed module

Each PNEUMOFRAMED MODULE is a structure, which consists of:

• Pneumo-frames(inflatable frames) made of PVC textile;
• Outer canopy made of Oxford textile;
• Waterproof floor;
• Inner heat insulating tent made of foil textile;
• Insulated floor;
• Entrances–on one side pneumo-door, on the other side shutter door;
• Spare tools and accessories kit;
• Inflation equipment with pressure differential adjustment;
• delivery packaging.

All the modules are equipped with interior electrical network, depending on the purpose of the module, but each of them includes lighting, sockets and electric service panel.

Exploitation:

• temperaturefrom-55 till+70°С
• air humidity from98% under25°С
• atmosphere pressure corresponds to the height till3000 m above sea level
• wind speed till25 m/s
• rain intensity till5 mm/min
• snow load till25 kg/m2

All the textiles, which are used in manufacture, are designed for. personal body contact and do not require compulsory certification.
